The interchangeable shunt is used to multiply the measuring range of measuring instrument.
該類固定式定植分流器用于擴大儀表測量范圍。
| Technical specifications 技術說明 | |||||||
|
Accuracy class: 準確度等級： 0.5 for 5 ~ 40000A:1 for 5000 ~ 6000A 2~4000A : 0.5級； 5000~6000A : 1級 Ambient conditions: 環境條件 Temperature: 溫度 -40 ~ +60°C; relative humidity: 相對濕度: ≤95% 35°C. Capacity to withstand mechanical force: 耐機械性能 It is capable of with standing the transport bumping at acceleration of 70m/s2 and shock frequency of 80~120 time/min for 5 hours. 能承受加速度為70m/s2及沖擊頻率每分80~120次6小時的運輸顛震。 Over rating capacity 過負載性能:120% of rated current for 2 hours. 120%額定電流值，2小時。 Voltage drop: 電壓降： 50mV, 60mV, 75 mV, 100mV. Given out heat when over loaded: 負載下發熱 ： Not be more than 80°C after temperature rise get steady; Not be more than 80°C at rated current of over 50A.. 溫升變化趨于穩定后，額定電壓50A以下不超過80°C，額定電流50A以上不超過120°C |
|||||||

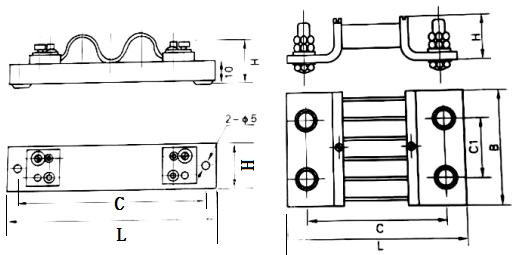

| Type 型號 | Specification 規格 | Dimensions尺寸 | Install size安裝尺寸 | ||||
| L | B | H | C | C1 | Install nail | ||
| FL13-75mV | 30A | 100 | 20 | 21 | 85 | M5 | |
| FL13-75mV | 50A | 1301 | 14 | 30 | 85 | M8 | |
| FL13-75mV | 75A | 130 | 14 | 30 | 85 | M8 | |
| FL13a-75mV | 100A | 130 | 14 | 30 | 85 | M8 | |
| FL13a-75mV | 200A | 130 | 24 | 30 | 85 | M10 | |
| FL13a-75mV | 300A | 130 | 30 | 30 | 100 | M10 | |
| FL13a-75mV | 400A | 130 | 42 | 30 | 100 | M10 | |
| FL13a-75mV | 500A | 130 | 52 | 30 | 100 | M10 | |
| FL13a-75mV | 600A | 130 | 60 | 30 | 100 | 50 | M10 |
| FL13a-75mV | 750A | 130 | 77 | 30 | 100 | 50 | M10 |
| FL13a-75mV | 1000A | 130 | 95 | 30 | 100 | M10 | |
